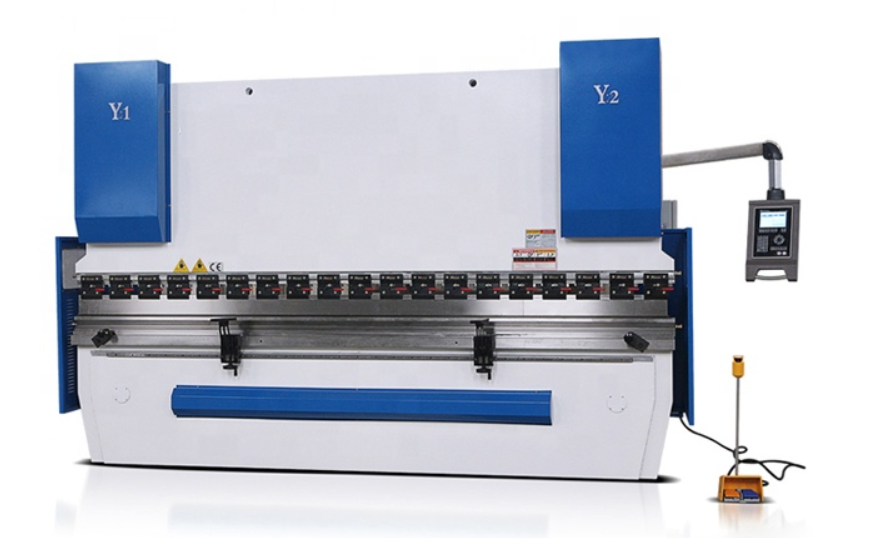

ELECTRICAL HYDRAULIC SERVO WE67K |
Advanced proportional valve controls the hydraulic cylinders to work synchronously and achieve precise repeatability performance.
Be capable of be controlled random point within the stroke
Repeatability precision +/-0.01mm,parallelism precision +/-0.02mm
Deflection compensation table or crowning system for high precision
Holland Delem CNC together with linear encoder,Bosch-Rexroth valves,servo motors and other famous brand elements to ensure excellent performance
Ram stroke(Y1,Y2) and backgauge(X,R,Z)are controlled by CNC
Muil-axis CNC controlled synchronous press brake available as medal sheet fabricating center
DA-52s features
Quick, one page programming
Hotkey navigation
7” VGA colour TFT
Up to 4 axes (Y1, Y2, and 2 auxiliary axes)
Crowning control
Tool/material/product library
USB, peripheral interfacing
Advanced Y-axis control algorithms for closed loop as well as open loop valves

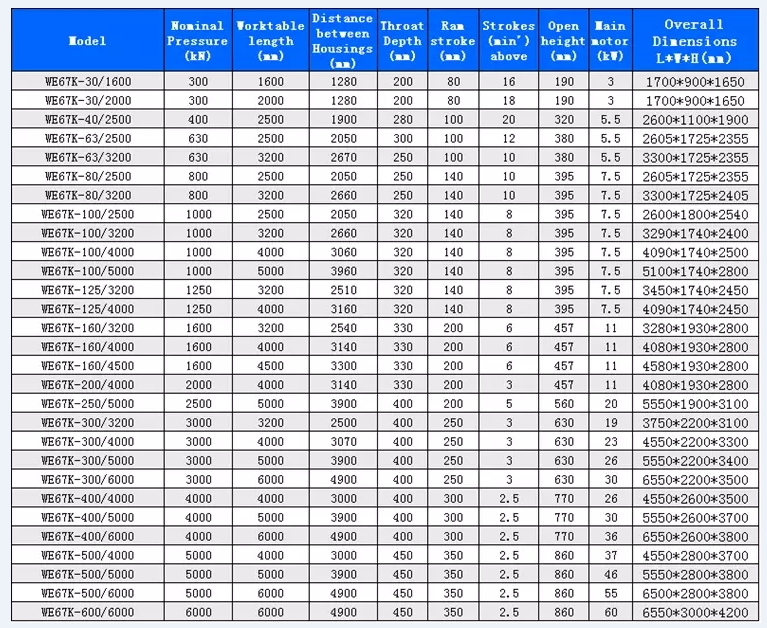

Techanical Parameters
