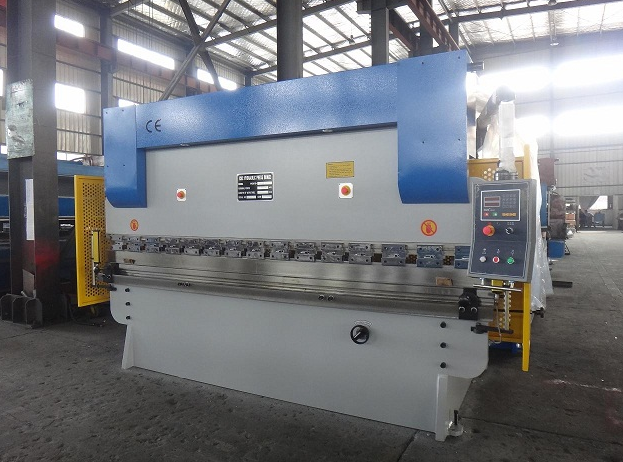

WC67Y SERIES HYDRAULIC PRESS BRAKE |
Features
1.All Steel Welded, Vibration eliminate stress, high mechanical intensity, good rigidity.Hydraulic upper
transmission, steady and reliable.
2. Mechanical stop dog, synchronization in twist axis, high precision.
3.Back gauge distance, upper ram stroke can be adjusted by motor-drive,manual operation micro-adjust
equipment, numerical display.
4.WE WORKTABLE full deflection compensation
Basic Main Components
1.NC display: Korea
2 Main Seal: PARKER
3.Main electronic element: Siemens/Schneider
4 Main Motor
5 Group valev
6.Conjugate internal gear pump
7.Back gauge
8.Mould
9.Oil cylinder
10.Front Plate Feeding will be equipped
11.Free charge Standard Upper and Down Mould

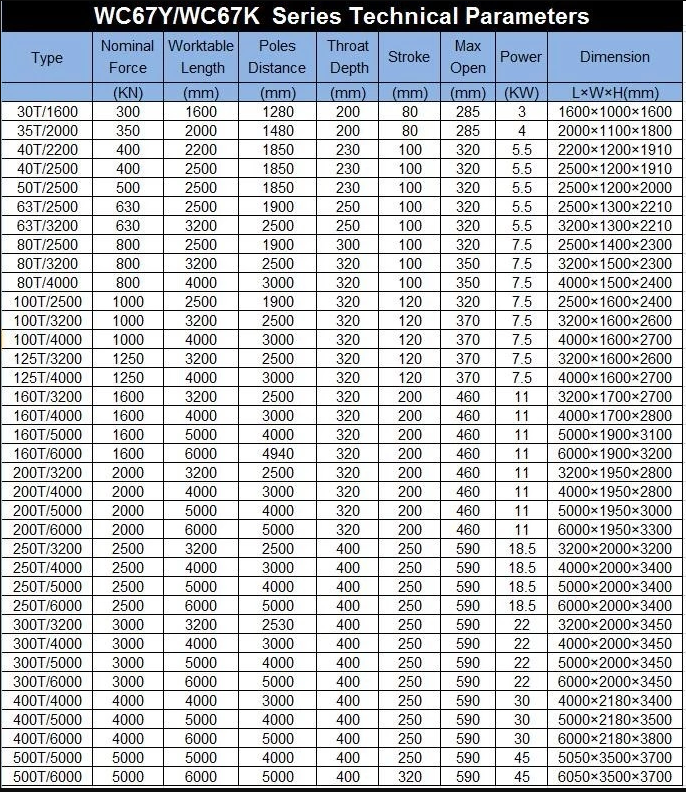

Specification:
