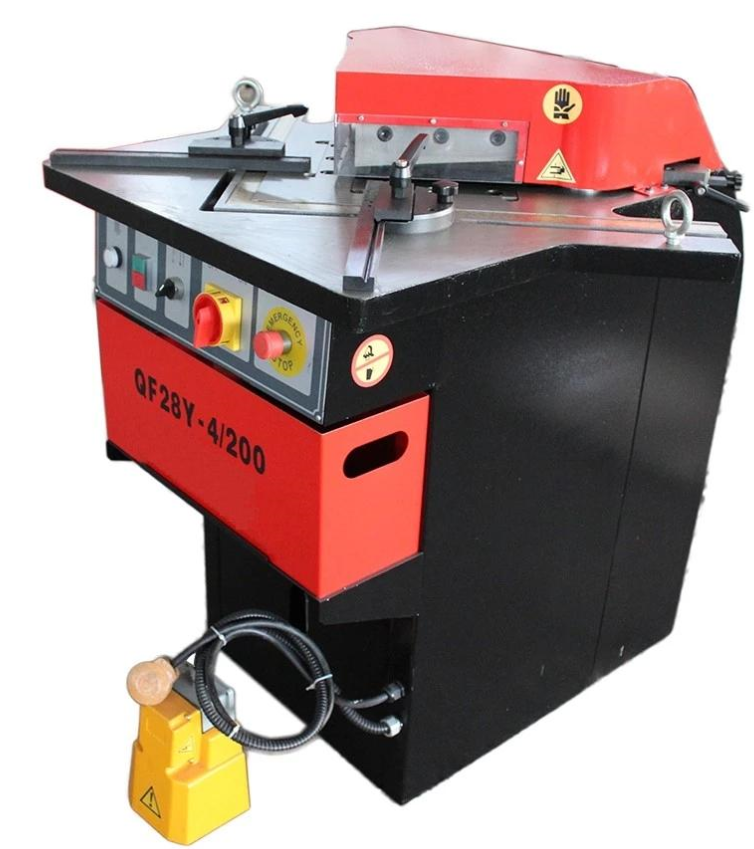

Fixed Angle Hydraulic Corner Notching

Product Description


Product Application

The QF28 series hydraulic notcher can cut up to 6 mm

The biggest notcher size is 250x250mm

The notching angle fixes in 90° with high notching speed

The hydraulic notcher has compact structure,small volume and convenient operation


Product Parameter

Model

QF28Y-4*200

QF28Y-6*200

Shear Capacity

Stainless steel:2mm

Mild steel :4mm

Stainless steel:3mm
Mild steel :6mm

Notching Max size

200x200mm

200x200mm

Notching Angle

90o

90o

Stroke Times

30t/min

30t/min

Power

3kw

4kw

Oil Volume

30L

30L

Max Pressure

16Mpa

16Mpa

Voltage

380v 50hz

380v50hz

Blade Materials

9CrSi

9CrSi

Electric Component

Siemens

Siemens

Seal in the cylinders

NOK

NOK

Net Weight

520KG

665KG

Dimension

1000*1000*1200MM

1050*1050*1200MM

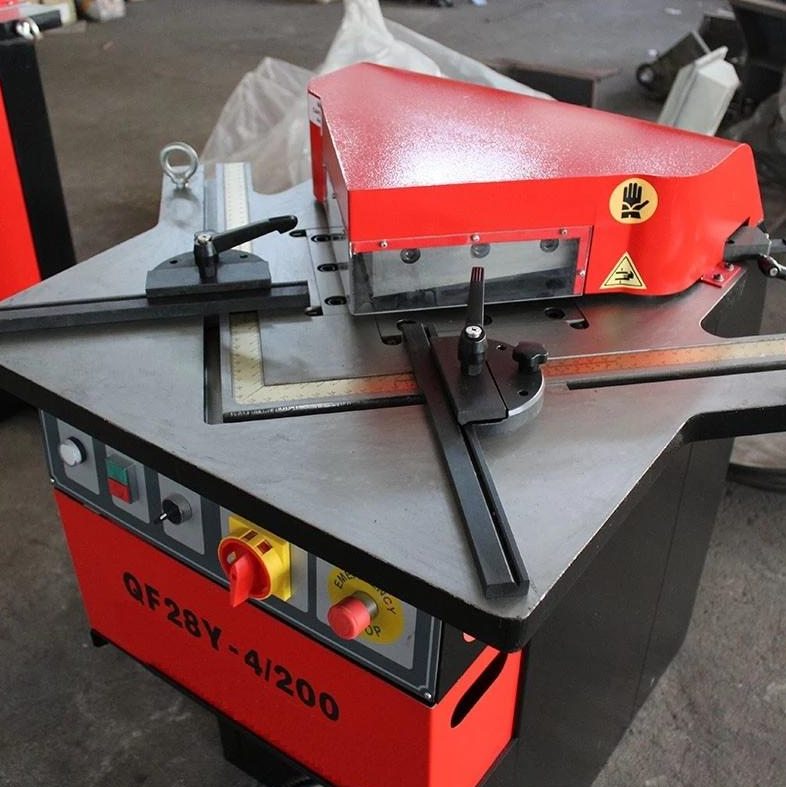

Details:
