Q11 Series Mechanical Shearing Machine |
The mechanical guillotine shear Q 11 Series are of mechanical gate-mode, deep throat and sheared metal can be used directly
with overload protection device. So the mechanical guillotine shear has got the patent of steel construction. This series of
guillotine shears are mechanical gate-mode metal sheet shears used for straight cutting steel plate. Generally speaking, the
sheared metal sheet can be used directly without any other processing. The guillotine shearing machine can be operated
through turn-key clutch and foot switch, which can be in both single and continuous cutting way. Besides,guillotine shearing
machine is of easy access to operation and maintenance.
With the turn-key clutch and foot switch, the guillotine shearing machine can be used in single or continuous cutting way.
Equipped with cast iron and top transmission structure, the guillotine shearing machine can be straight in cutting steel plate.
The guillotine also has a high tensile alloyed shearing blade, one emergency stop buttons as well as a protection fence to
ensure the security. With such wonderful features, this guillotine shearing machine is widely received by customers from
the Middle East, South Africa, Asia, South Africa, Europe and more.

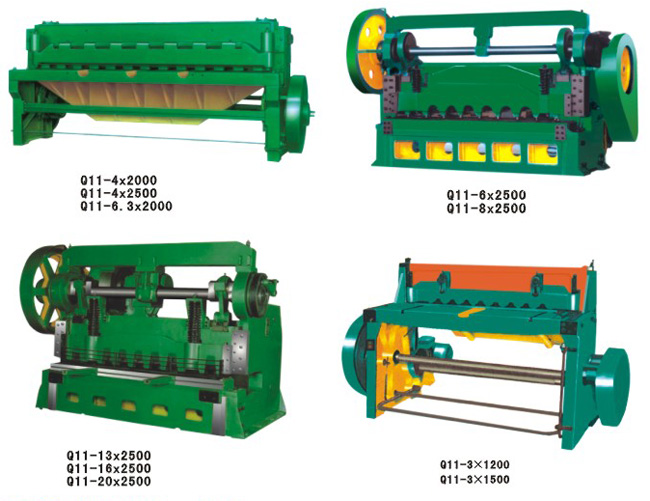

| Model | Max. Cutting Thickness(mm) | Max. Cutting Width(mm) | No. of Strokes (rpm) | Shearing Angle(°) | Distance of back gauge(mm) | Power of main motor(kw) | Overall dimensions(mm) | Weight(kg) |
| 3×1300 | 3.0 | 1300 | 20 | 2°25′ | 350 | 3 | 2115×1500×1300 | 1600 |
| 3×1500 | 3.0 | 1500 | 20 | 2°25′ | 350 | 3 | 2415×1500×1300 | 1800 |
| 4×2000 | 4.0 | 2000 | 20 | 1°30′ | 500 | 5.5 | 3200×1300×1610 | 3300 |
| 4×2500 | 4.0 | 2500 | 20 | 1°30′ | 500 | 5.5 | 3580×1300×1610 | 3800 |
| 4×3200 | 4.0 | 3200 | 20 | 1°30′ | 600 | 7.5 | 4380×1900×1600 | 5200 |
| 4×4000 | 4.0 | 4000 | 20 | 1°30′ | 600 | 7.5 | 4650×1820×1700 | 6000 |
| 6×2000 | 6.3 | 2000 | 24 | 2° | 500 | 7.5 | 3180×1765×1550 | 4500 |
| 8×2000 | 8.0 | 2000 | 24 | 2° | 500 | 11 | 3180×1765×1550 | 5000 |
| 6×2500 | 6..0 | 2500 | 24 | 2° | 500 | 7.5 | 3680×2200×2020 | 5400 |
| 6×3200 | 6.0 | 3200 | 20 | 1°45′ | 650 | 7.5 | 4300×2250×2150 | 7500 |
| 8×2500 | 8.0 | 2500 | 20 | 2°30′ | 650 | 11 | 3680×2250×2450 | 6500 |
| 13×2500 | 13.0 | 2500 | 30 | 3° | 700 | 15 | 3680×2330×2500 | 13300 |
| 16×2500 | 16.0 | 2500 | 30 | 3° | 700 | 22 | 3680×2800×2450 | 14500 |
| 20×2500 | 20.0 | 2500 | 25 | 3° | 750 | 22 | 3950×2800×2900 | 20000 |
