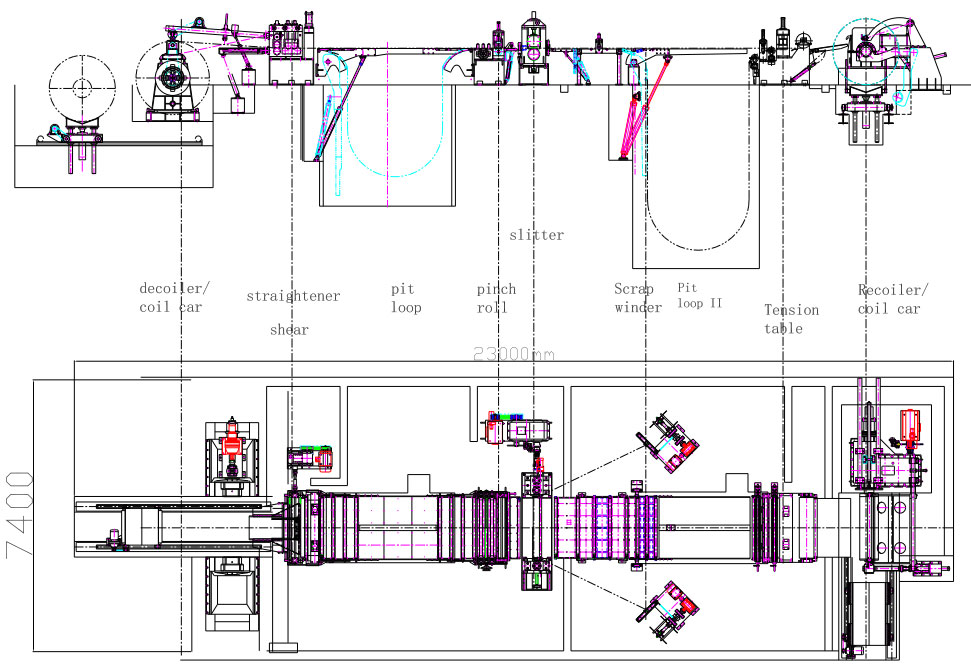

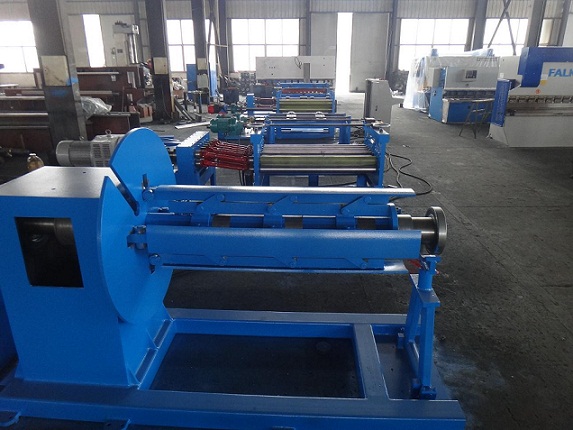

Slititng Production line Slitting production line is the most popularized standard line for customer to cut material upto 6mm thick, 2000mm width of coil ,with speed 120m/min,cutting strips 30 pieces. It has the merit of extensive application scope.The machine can do uncoiling,straightening, slitting and recoiling works. Machine consists of uncoiler ,straightener ,front loop,slitting machine,scrap winder, rear loop,tension unit , recoiler ,asisting support ,exit coil car ,hydraulic system ,electrical system and so on. The whole line is controlled by PLC with computer display. We mainly apply computer-control system of brands Mitsubishi, Yaskawa, Siemens, Baumueller, Delta, and Schneider. The information of order amount, cutting strips and speed can be input to the PLC systems.This line is highly automatic with low cost ,long sevice life reliable performance .Most customer used it together with pipe mill machine ,this machine gets highly praise from customers at home and abroad 1. Machine parts in the working line 1. coil car 2. decoiler 3. peeler entry table 4. Straightener. 5. Shearing machine 6. loop table 7. coil guide and pinch roll 8. Slitting machine 9. scrap winder (both sides) 10. Loop table 11. separator and tension table 12. Deflector roll and exit threading table 13. Recoiler 14. Over arm separator in the recoiler. 15. Exit coil car for recoiler 16. Hydraulic system 17. pneumatic system 18. electrical control system 2. Technical parameter: |
