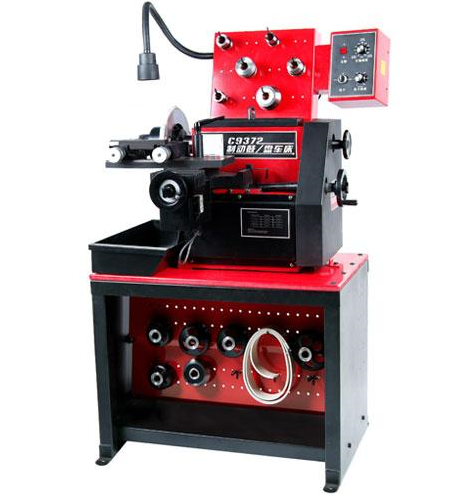

Brake Lathe C9372
Quickly, accurately and efficiently to cutting rotor;
Fast and slow setting allow cutting rotor;
Quick, accurately and efficiently to cutting drum;
Finitely adjustably setting allow cutting drum;
Three kinds of speed to choice for spindle speed;
Fully equipped adapter package.
A convenient design allows to quickly change rom rotor to drum;
Position of stop make the lathe stop automaticafter the cutting;
Model | C9350 | C9370 | C9372 |
Spindle Travel | 175mm | 251mm | \ |
Spindle Speed | 70, 80, 118rpm | 70,88,118 rpm | 70-320rpm |
Spindle Feed Speed | Min 0.05mm/rev | Min 0.05mm/rev | Rotor and drum feed rates 0-0.66mm |
Max 0.5mm/rev | Max 0.5mm/rev | ||
Cross Feed Speed | Min 0.05mm/rev | Min 0.05mm/rev | Rotor and drum feed rates 0-0.66mm |
Max 0.5mm/rev | Max 0.25mm/rev | ||
Handwheel Graduations | 0.05mm | 0.05mm | |
Rotor Diameter | 180-381mm | 180-457mm | 102-610mm |
Rotor Thickness | 48mm | 102mm | 73mm |
rum Diameter | 175mm | 251mm | 229mm |
Motor | 1PH 110V/220V 50/60HZ , 3PH 380V 50/60HZ | 1PH 110V/220V 50/60HZ | |
Gross Weight | 290kg | 400kg | 300kg |
Dimension | 970x920x1140mm | 1100x1070x1140mm | 1000x860x1300mm |
