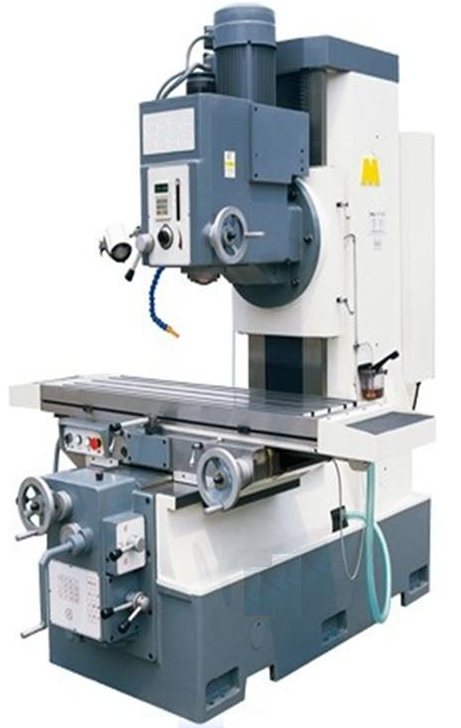

Bed-type milling machine XA7140 |
Bed Type Vertical Milling Machine
1. Solid, grey cast iron construction allows heavy table load
2. Large flat guide guarantees stability at heavy milling
3. Handwheel allows feed (100 mm) of oversize spindle
4. Polished table, supported well by wide saddle
5. Wide speed range (20 - 1800 rpm) feat. high torque and spindle brake
6. Stepless speed adjustment comes standard
7. Inductive hardened and polished guide ways
8. Reinforced saddle in robust box construction
9. Column and machine stand are solidly designed
Specifications | Units | XA7140 |
Table size | mm | 1400×400 |
Table travel | mm | 800×400 |
Number/Width/Distance of T-slot | mm | 3-18-100 |
Max. load of table | kg | 800 |
Distance from spindle axis to column guideway | mm | 520 |
Distance from spindle nose to table surface | mm | 150-650 |
Spindle taper | ISO50 | |
Quill travel | mm | 105 |
Spindle speed range (infintely variable speed) | rpm | 18-1800 |
Overall dimension | mm | 2290×1840×2120 |
Spindle motor power | kW | 7.5 |
Machine weight | kg | 3860 |
Standard accessories:
1.Drawbar M 10 / M 12 / M 16 / M 24
2.WORK light
3.Coolant device
4.Taper shell end mill holder ISO 50 / 40 mm
5.Adapter ISO 50 / MT 4
6.Central lubrication
7.Telescope cover in z-axis
8.Stepless speed adjustment
9.Anchor bolts
10.Universal protective device
11.Tools
Optional accessories:
1.Mill chuck set ER 40, ISO 50, 3 - 25 mm, 16 pcs.
2.Horizontal & vertical rotary table HV 12 - 300 mm
3.Tiltable rotary table TSK 320
4.Semi-universal dividing head BS-1
5.Deluxe clamping kit set 58 pcs., 18 mm, M 16
6.Two-parts milling vise MS 200
7.Hydro machine vise AH 200 with swivel base
8.Hydro machine vice VH 200 with swivel base
