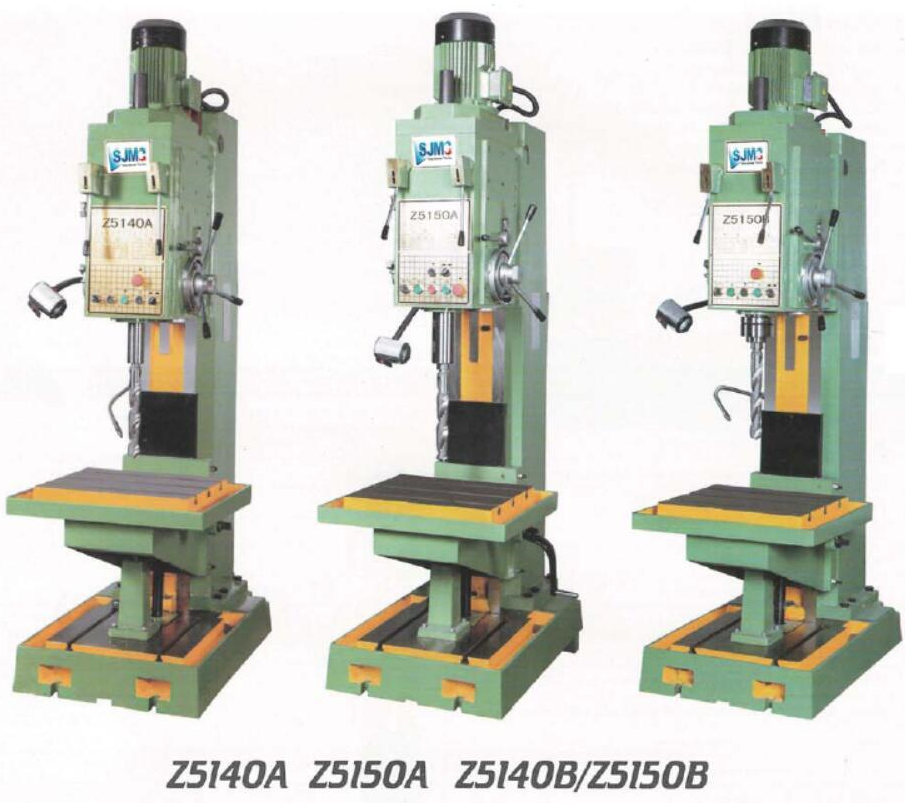

Z5140A Z5150A Z5140B Z5150B |
SQUARE COLUMN VERTICAL DRILLING MACHINE
Square-column vertical drilling machine is a universal general-purpose machine.
Its used for counter-sinking, spot-facing drilling, tapping, boring, reaming, etc.
The machine has catch the function of tap-automatically reversing device which
is suitable for tapping of blind and determined holes.
The machine has high efficiency, high accuracy, low noise,
wide range of variable speed, centralized controls good looking appearance,easy maintenance and operation.
SPECIFICATION | UNITS | Z5140A | Z5140B |
Max. Drilling diameter | mm | 40 | 40 |
Spindle taper | morse | 4 | 4 |
Spindle travel | mm | 250 | 250 |
Spindle box travel | mm | 200 | 200 |
Number of spindle speeds | step | 12 | 12 |
Range of spindle speeds | r/min | 31.5-1400 | 31.5-1400 |
Number of spindle feeds | step | 9 | 9 |
Range of spindle feeds | mm/r | 0.056-1.80 | 0.056-1.80 |
Table size | mm | 560×480 | 800×320 |
Longitudinal/cross travel | mm | / | 450/300 |
Vertical travel | mm | 300 | 300 |
Max.distance between spindle and table surface | mm | 750 | 750 |
Motor power | kw | 3 | 3 |
Overall dimension | mm | 1090×905×2465 | 1300×1200×2465 |
Machine weight | kg | 1250 | 1350 |
SPECIFICATION | UNITS | Z5150A | Z5150B |
Max. drilling diameter | mm | 50 | 50 |
Spindle taper | morse | 5 | 5 |
Spindle travel | mm | 250 | 250 |
Spindle box travel | mm | 200 | 200 |
Number of spindle speeds | step | 12 | 12 |
Range of spindle speeds | r/min | 31.5-1400 | 31.5-1400 |
Number of spindle feeds | step | 9 | 9 |
Range of spindle feeds | mm/r | 0.056-1.80 | 0.056-1.80 |
Table size | mm | 560×480 | 800×320 |
Longitudinal(cross) travel | mm | / | 450/300 |
Vertical travel | mm | 300 | 300 |
Max.distance between spindle and tabel surface | mm | 750 | 750 |
table surface | kw | 3 | 3 |
Motor power | mm | 1090×905×2465 | 1300×1200×2465 |
Overall | kg | 1250 | 1350 |
